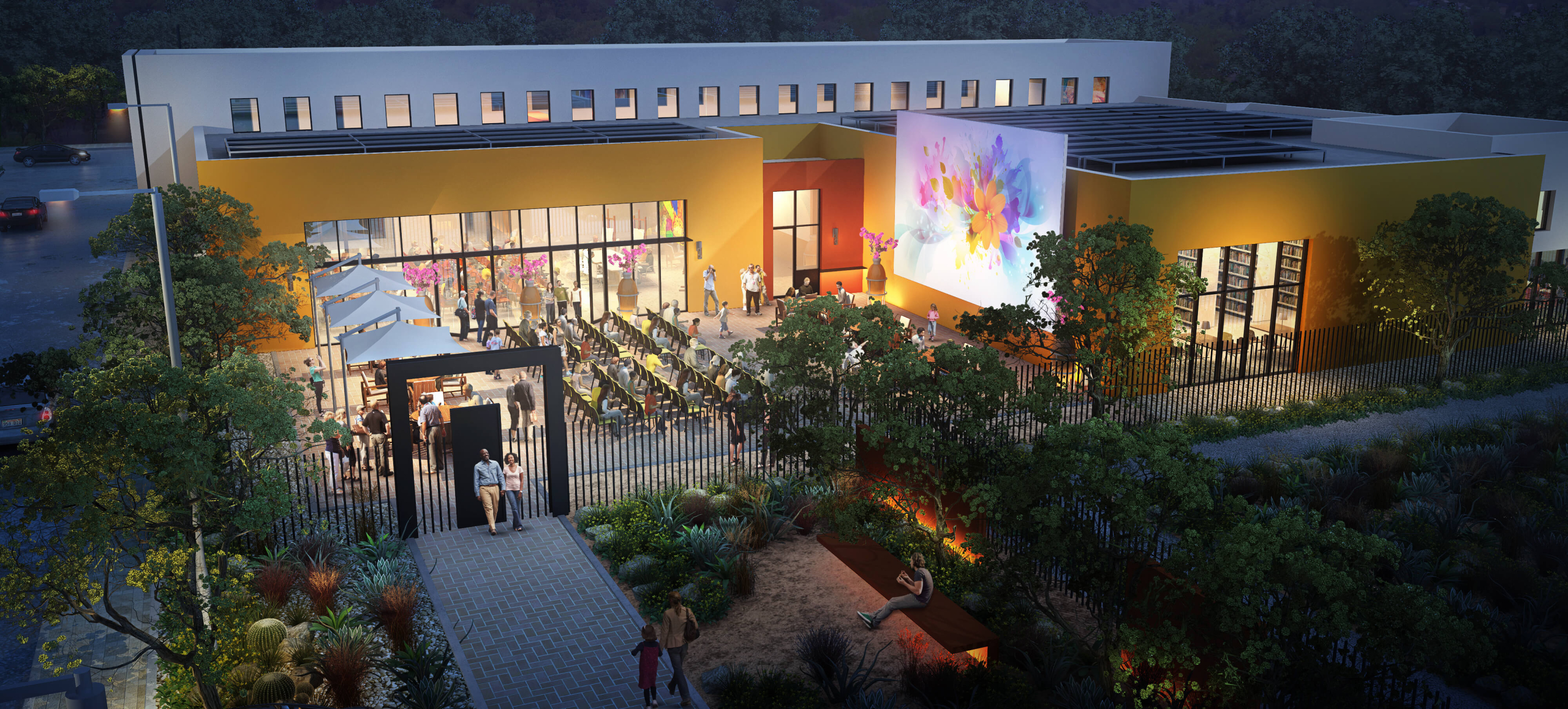

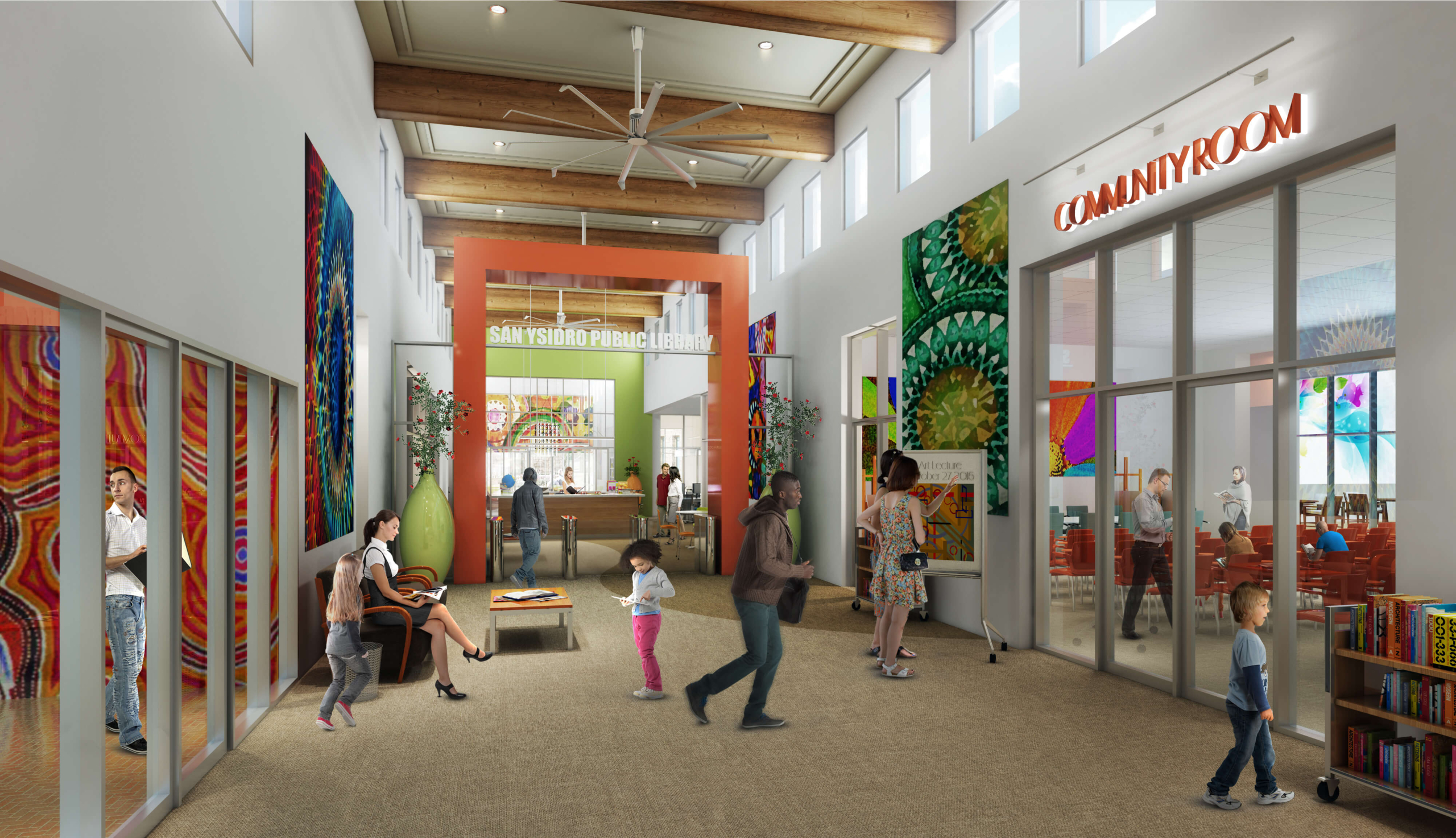

The new single-story library is approximately 16,500 SF and located only a few blocks from the existing historic San Ysidro Library. Incorporating a design that achieves a LEED Gold certification, this project serves the growing San Ysidro community. The new library is a resource for all residents containing multiple modern library amenities that include children and teen study areas, computer lab and multi-purpose area. This project supports the City of San Diego in their sustainability goals while providing a space to encourage interaction and activity.
Mechanical systems include High Efficiency DDC controlled and monitored VRF heat recovery system. The building is served by fan coil units located above the ceiling; they are DX, constant volume units (EC motors) with ducted supply and return. The heat pump units are located on the roof in a mechanical well. The indoor fan coils have individual directly ducted filtered outside air.
Plumbing systems include sanitary waste and vent system, domestic cold and hot water system, and storm drain system. Plumbing fixtures are low flow and domestic water heating is provided by electric water heaters.
Sustainable Features include a minimum 18 SEER VRF heat recovery air conditioning system, Ultra low-flow & flush plumbing fixtures, interlocking door sensors to shut down HVAC systems with zones that open to the outside, high indoor air quality with MERV 11 filtration meeting LEEDv4 Gold standards, and a PV renewable energy system.
